This blog post is based on my German article with the same title, published in issue 1/2026 of the Red Stack Magazin.

Measuring Software Quality

Imagine you are part of a team where code changes to a feature or bug fix branch are only merged into the develop or main branch following a review. Sometimes you are the author and sometimes one of the reviewers. I am currently part of a team that works in this way. In addition to quality assurance, knowledge sharing is also an important aspect. But how can we assess code quality?

This well-known meme by Thom Holwerda says, “The only valid measurement of code quality is WTFs per minute.” This seems to be a good metric. However, this metric does have some flaws.

• It is subjective.
• It does not provide any information about what is being assessed.
• It does not help new team members to adapt quickly.
• And it cannot be automated in a meaningful way.

Sooner or later, a team has no choice but to agree on a set of rules. They can be informal or formal. Typical coding guidelines cover topics such as naming conventions, formatting, code complexity, and language usage rules. The aim is to define and comply with quality standards relating to maintainability, reliability, performance and security. Written coding guidelines also simplify the onboarding of new team members.

Automation

Manually checking compliance with coding guidelines as part of a review is so time-consuming that no one can afford to do it properly. Therefore, we have to automate as many checks as possible. This is possible for many aspects. The rest still have to be checked manually.

In other words, we need a tool suite for automatic rule checking. dbLinter is such a tool suite. It is a new product developed and continuously improved by Grisselbav and United Codes. dbLinter uses the IslandSQL parser, which is updated quarterly with every release update of the Oracle AI Database for SQL, PL/SQL, SQL*Plus and SQLcl.

dbLinter is the successor to the decommissioned db* CODECOP suite. dbLinter consists of a central repository, a web GUI and client tools. These include a CLI, a SonarQube plugin and a VS Code extension.

Visual Studio Code Extension

The VS Code extension is compatible with all IDEs that implement the Visual Studio Code Extension API. Specifically: Visual Studio Code, Theia IDE, VSCodium, Cursor, Windsurf, Void, Kiro and Antigravity.

dbLinter for VS Code is available in both the Visual Studio Marketplace and the Open VSX Registry. Therefore, it can be conveniently installed directly from the IDE. The extension is free to use as part of the Anonymous and Starter plans (see dbLinter Pricing Plans).

It is important to note that your code is always analysed locally, meaning that it never leaves your network. The configuration is read from the central repository, enabling the client to identify the active rules and parameters. These configurations, along with others, are managed using the Web GUI.

dbLinter currently offers 187 rules. This includes all the rules from the decommissioned Trivadis PL/SQL & SQL Coding Guidelines. Figure 2 shows the configuration of my 14 favourite rules. A violation of one of these rules is a bug. There is almost no room for interpretation here. The following chapters provide two examples.

Top-N Queries with ROWNUM

The query in Listing 1 is based on the well-known EMP table owned by the database user SCOTT. It returns two rows.

select ename,
       sal,
       hiredate,
       rownum as rank
  from emp
 where rownum <= 2
 order by sal desc;

select ename,
       sal,
       hiredate,
       rownum as rank
  from emp
 where rownum <= 2
 order by sal desc;

ENAME             SAL HIREDATE         RANK
---------- ---------- ---------- ----------
ALLEN            1600 20.02.1981          2
SMITH             800 17.12.1980          1

ENAME             SAL HIREDATE         RANK
---------- ---------- ---------- ----------
ALLEN            1600 20.02.1981          2
SMITH             800 17.12.1980          1

However, the result barely meets the requirements. I would have expected the two employees with the highest salaries to be returned. Why is this not the case? The query is formulated in such a way that two rows are randomly selected and then sorted in descending order by salary. The result depends on the execution plan and the physical storage of the data.

In VS Code, rule violations are displayed under Problems (see Figure 3). There is also a Core G-3185 link that opens the rule details in the Web GUI.

Rule G-3185 in the web GUI is explained based on a similar case in the HR schema (see Figure 4). There are two solutions here. One that can be applied in all Oracle Database versions and one that works from version 12c onwards. Listing 2 shows the traditional solution, which uses an inline view. Of course, nowadays I would always prefer a solution using the row_limiting_clause.

We can also see that the rule is used in six configurations. Clicking on “(details)” opens a pop-up window in which changes can be made. This allows you to configure the rules directly from the IDE.

select e.*,
       rownum as rank
  from (
          select ename,
                 sal,
                 hiredate
            from emp
           order by sal desc
       ) e
 where rownum <= 2;

select e.*,
       rownum as rank
  from (
          select ename,
                 sal,
                 hiredate
            from emp
           order by sal desc
       ) e
 where rownum <= 2;

ENAME             SAL HIREDATE         RANK
---------- ---------- ---------- ----------
KING             5000 17.11.1981          1
SCOTT            3000 19.04.1987          2

ENAME             SAL HIREDATE         RANK
---------- ---------- ---------- ----------
KING             5000 17.11.1981          1
SCOTT            3000 19.04.1987          2

NVL vs. COALESCE

One often underestimated rule is “G-4230: Always use a COALESCE instead of a NVL command, if parameter 2 of the NVL function is a function call or a SELECT statement”. This rule is about performance, which is relevant to all of us, especially when it is poor. This is why this rule is important.

with
   function slow_function return integer is
   begin
      sys.dbms_session.sleep(0.2);
      return null;
   end slow_function;
select ename, nvl(mgr, slow_function()) as mgr
  from emp;

with
   function slow_function return integer is
   begin
      sys.dbms_session.sleep(0.2);
      return null;
   end slow_function;
select ename, nvl(mgr, slow_function()) as mgr
  from emp;

Listing 3 demonstrates a case in which the use of NVL results in an execution time of approximately 2.8 seconds. If COALESCE is used instead of NVL, the execution time is only about 0.2 seconds. The reason is that NVL always evaluates the second parameter, even if the first parameter is not null. COALESCE works differently: the second parameter is only evaluated if the first parameter is null. This performance difference originates from the fact that the EMP table contains 14 rows, but only one of these returns an empty MGR.

In this case, using COALESCE is definitely the better solution. So, should NVL always be replaced by COALESCE? No. There are two special cases:

1. NVL supports implicit data type conversion.
   select nvl(mgr, '1') from emp works, but select coalesce(mgr, '1') from emp causes an ORA-00932 error. However, implicit type conversions should be avoided anyway. The code should be adjusted accordingly.

2. Optimisations of NVL can lead to better execution plans.
   Such optimisations currently only exist for NVL and not for COALESCE. Therefore, it is better to continue using NVL in these cases. See The Magical NVL Function by Monika Lewandowska for an example.

Quick Fixes

dbLinter knows these special cases. It offers appropriate alternative solutions. See Figure 5.

dbLinter can apply quick fixes to different sections. For example, for a single violation of a rule, for all violations of a rule, or for all violations of all rules in the editor window.

The “@dbLinter ignore markers” are special comments used to ignore rule violations. There are various legitimate reasons for doing this. For example, in the case of false positives (dbLinter bugs) or exceptions to the rule. A comment such as -- @dbLinter ignore(G-4230): NVL forever can have the following scopes: line, statement or file, depending on where the comment is positioned.

Code Analysis and AI

The solution proposals in Figure 5, indicated by the yellow lamp symbol, are quick fixes from dbLinter. However, the last two menu options come from GitHub Copilot.

When Copilot suggests a solution to a rule violation, dbLinter provides the necessary context, including the file and the exact location of the violation, as well as the name of the violated rule. This gives Copilot access to the rule definition online, enabling it to suggest a reasonable solution in many cases. In other words, dbLinter enhances the support offered by tools such as Copilot, Cline and Windsurf.

Rules are useful for AI tools. They provide a framework that leads to better results. However, there is no guarantee that all rules will be followed. Ultimately, code generated or expanded by AI becomes part of our code base. This is why it is important to check AI-generated code according to the same rules as manually created code.

In other words, AI does not enforce standards. But dbLinter can do that.

Conclusion

Software quality is a matter of definition. dbLinter offers many rules. Not all of them are useful and applicable to every project. The dbLinter rules can therefore be seen as a large buffet. You choose what you like and what is healthy. But not too much at once. Nevertheless, there are some rules that, in my opinion, should be followed in every project. I have presented two of them in this blog post.

Install dbLinter for VS Code to identify the rules that will be most helpful for your projects. The rules in Figure 2 are certainly a good starting point.

If you have any questions, please feel free to contact me. Alternatively, you can create issues directly in the dbLinter GitHub repository.

The post Fighting Bad PL/SQL & SQL with VS Code appeared first on Philipp Salvisberg's Blog.

The Oracle SQL Developer team is working on bringing the essential functionality built over the last 20 years in the classic SQL Developer IDE—a JDeveloper extension running as a standalone application—to the modern VS Code IDE. The integration with the VS Code ecosystem greatly enhances the developer experience.

Is it time to switch? – Well, it depends on which part of SQL Developer you use and how often. I’d say it’s time to start using the SQL Developer extension for VS Code. Use the classic SQL Developer when needed. You will do it less and less over time.

The SQL Developer extension is available in the VS Code Marketplace. That simplifies the installation for VS Code users. Unfortunately, this marketplace is not available in forks of VS Code or, more precisely, in IDEs that implement the VS Code extension API, such as VSCodium, Cursor, Windsurf and Theia IDE. So, how do we install VS Code extensions, specifically SQL Developer, in these IDEs? – I’ll answer this question in this blog post.

Installing SQL Developer in VS Code

The easiest way to install SQL Developer in VS Code is to start VS Code, search for oracle sql developer in the Extensions view, and click on the Install button. That’s it.

Please note that the second entry shown in the screenshot above is a deprecated/decommissioned extension developed by another team at Oracle. It’s a completely unrelated product.

Downloading SQL Developer’s .vsix File

At the time of writing, it is not possible (anymore) to download an extension such as SQL Developer directly from the VS Code Marketplace website. At least not officially. However, it’s possible in VS Code.

Instead of clicking on the install button as before, right-click on the extension and select Download VSIX.

and then select the platform architecture.

This is necessary because SQL Developer comes with a Java Runtime Environment, which contains platform-specific binaries.

Installing a VSIX File

VS Code, VSCodium, Cursor, Windsurf, and Theila IDE provide a Install from VSIX... command. You find it via View -> Command Pallette.... Run it,

and select the VSIX file to install, and you’re done.

Open VSX Registry

Why are VSCodium, Cursor, Windsurf and Theia IDE not using the VS Code Marketplace? – Because the Terms of Use do not allow this. Here’s the relevant passage:

(…) you may not access, search, obtain or attempt to obtain any Offerings, materials, or information from the Sites through any means other than directly from Microsoft’s publicly supported interfaces (…)

This is why VSCodium, Cursor, Windsurf and Theia IDE use the alternative marketplace Open VSX Registry.

At the time of writing, the Oracle SQL Developer Extension for VSCode is not available in the Open VSX Registry. Here’s a screenshot of a search in Cursor:

As you see, the deprecated/decommissioned extension is listed, but the successor is missing.

Summary

Installing an extension in VS Code via the integrated marketplace is super easy. Getting the .vsix file is also straightforward and enables the installation of VS Code extensions in IDEs that implement the VS Code extension API.

It would be great if the Oracle SQL Developer team published their SQL Developer extension on the Open VSX Registry too. This would make the initial installation and subsequent updates much simpler.

The post Installing SQL Developer in IDEs Implementing the VS Code Extension API appeared first on Philipp Salvisberg's Blog.

The Oracle Database 23c supports MLE JavaScript modules. MLE modules are standard ECMAScript 2022 modules. The easiest way to develop such modules is outside the database. This allows us to take advantage of the extensive JavaScript ecosystem and develop MLE modules in TypeScript instead of JavaScript.

In this blog post, I demonstrate how to develop and test an MLE module in TypeScript and deploy it into the database. I will use Node and VS Code.

TL;DR

See the conclusion and explore the code on GitHub.

Requirements

The idea is to provide a public stored procedure in the database that creates and populates the well-known tables dept and emp in the current schema. The function accepts different table names. The tables are not re-created if they already exist. However, the original data should be reset to their initial state while other rows should be left unchanged. Problems are reported via exceptions.

Nothing fancy. However, we will have to deal with SQL and address potential SQL injection vulnerabilities. Furthermore, it allows us to demonstrate how to test an MLE module outside the database.

Design

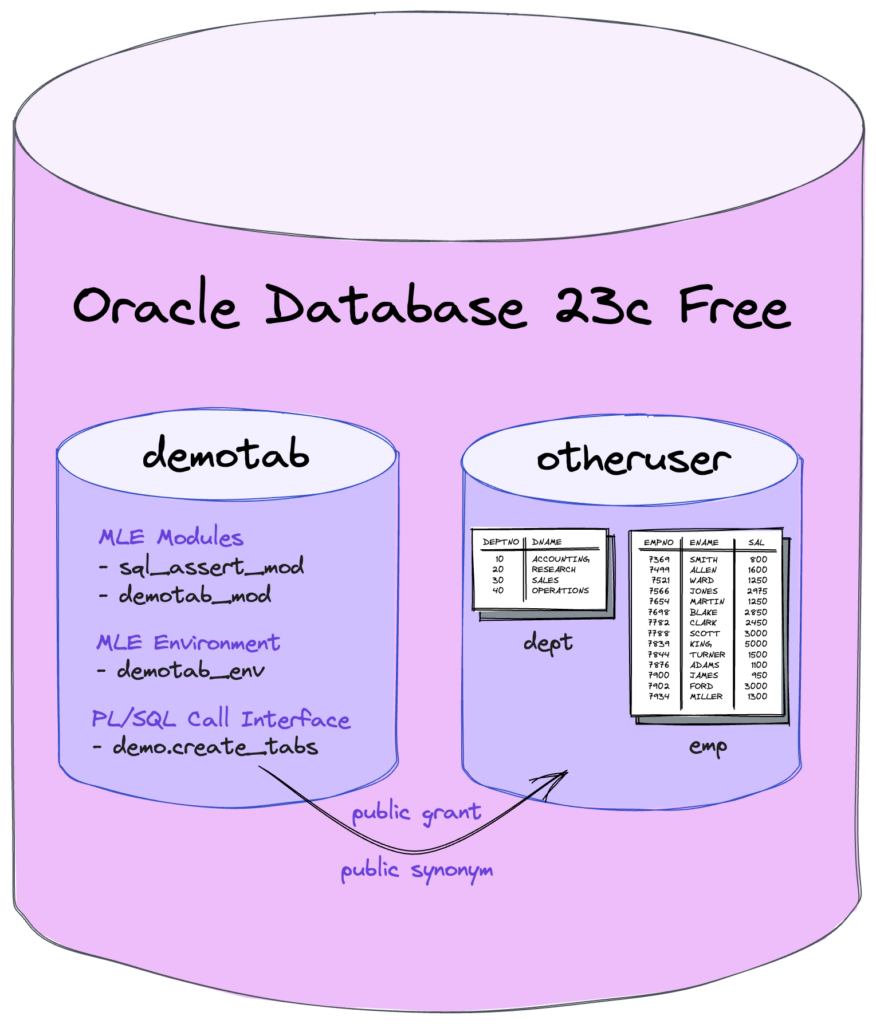

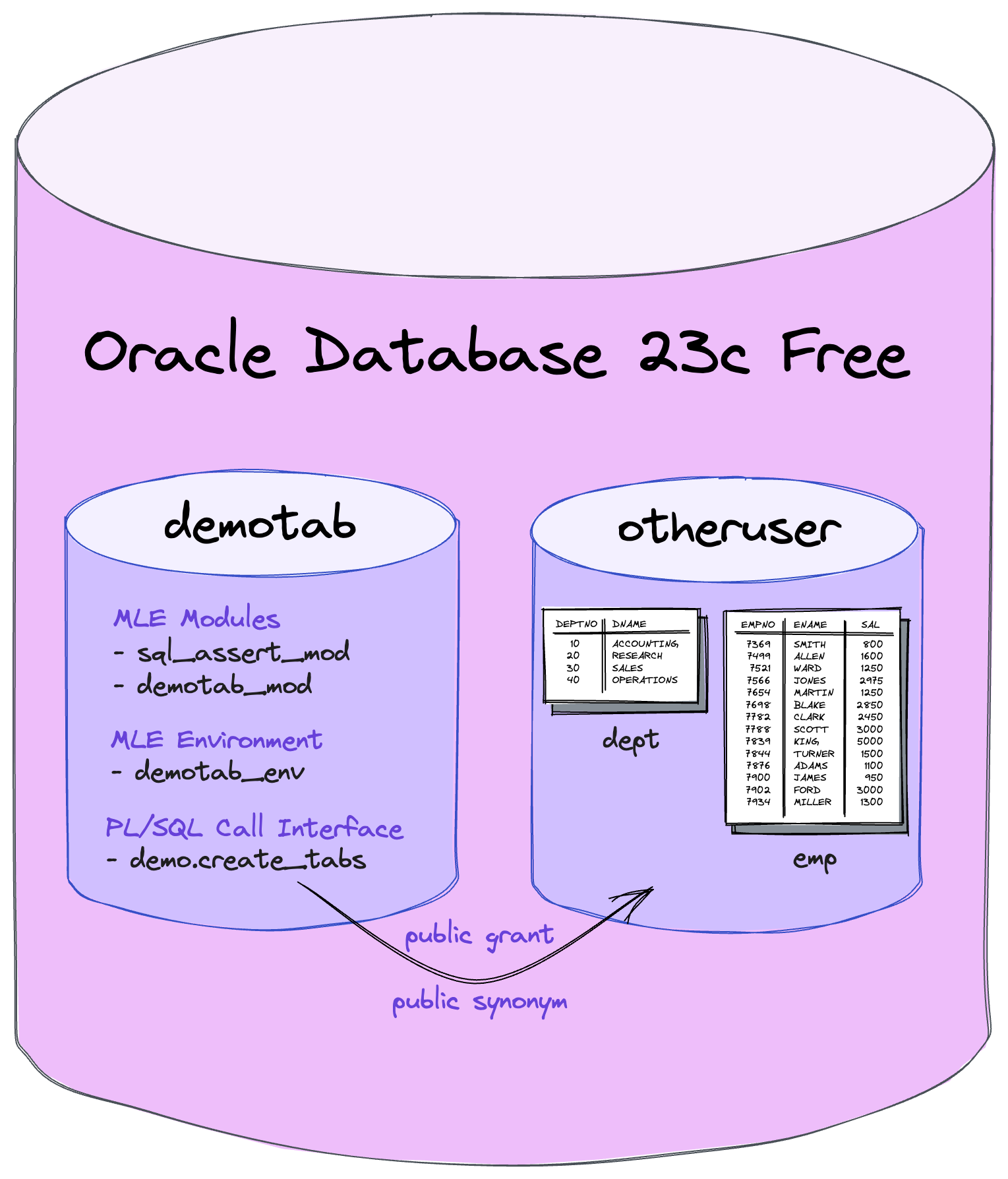

The following image visualizes the solution design.

We create an Oracle Database user demotab and deploy an npm and a self-made module as MLE modules into this schema, along with an MLE environment and a PL/SQL package as an interface. We grant the package to public and create a public synonym for it. As a result, any user in the database instance (e.g. the user otheruser) can execute the following code to install and populate the tables dept and emp within their schema.

begin
   demo.create_tabs;
end;
/

We can also pass alternative table names like this:

begin
   demo.create_tabs('departments', 'employees');
end;
/

Prerequisites

You need the following to build this MLE module yourself:

• Full access to an Oracle Database 23c Free (>=23.3). This means you know how to connect as sysdba.
• A machine with VS Code (>=1.83.1), Node (>=20.9.0) and SQLcl (>=23.3.0, must be found in the OS path).
• Internet access and the rights to install npm modules and VS Code extensions.

Prepare Node Project

Open a folder in VS Code where you want to develop the MLE module. And create the files package.json, tsconfig.json, .eslintrc and .prettier. The content of each file is shown below.

{
    "name": "demotab",
    "version": "1.0.0",
    "description": "Create and populate demo tables.",
    "type": "module",
    "scripts": {
        "build": "npm run format && npm run lint && npm run tsc && npm run coverage",
        "tsc": "tsc --project tsconfig.json",
        "lint": "eslint . --ext .ts",
        "format": "prettier --write './**/*{.ts,.eslintrc,.prettierrc,.json}'",
        "test": "vitest --no-threads --reporter=verbose --dir ./test",
        "coverage": "vitest --no-threads --dir ./test run --coverage"
    },
    "devDependencies": {
        "@types/oracledb": "^6.0.3",
        "@typescript-eslint/eslint-plugin": "^6.9.1",
        "@typescript-eslint/parser": "^6.9.1",
        "@vitest/coverage-v8": "^0.34.6",
        "eslint": "^8.52.0",
        "eslint-config-prettier": "^9.0.0",
        "oracledb": "^6.2.0",
        "prettier": "^3.0.3",
        "typescript": "^5.2.2",
        "vitest": "^0.34.6"
    },
    "dependencies": {
        "sql-assert": "^1.0.3"
    }
}

{
    "compilerOptions": {
        "rootDir": "./src",
        "target": "ES2017",
        "module": "ES2022",
        "moduleResolution": "node",
        "esModuleInterop": true,
        "forceConsistentCasingInFileNames": true,
        "strict": true,
        "skipLibCheck": true,
        "sourceMap": true,
        "outDir": "esm"
    },
    "include": ["./src/**/*"]
}

{
    "root": true,
    "parser": "@typescript-eslint/parser",
    "plugins": ["@typescript-eslint"],
    "extends": [
        "eslint:recommended",
        "plugin:@typescript-eslint/eslint-recommended",
        "plugin:@typescript-eslint/recommended",
        "prettier"
    ],
    "rules": {
        "no-console": "error"
    }
}

{
    "semi": true,
    "printWidth": 120,
    "singleQuote": false,
    "tabWidth": 4,
    "trailingComma": "none",
    "arrowParens": "always"
}

Initialize Node Project

Now we are ready to initialize the Node project. Open a terminal window in VS Code and execute the following command:

npm install

This will create a file named package-lock.json and a node_modules folder. package-lock.json is the table of contents for the node_modules folder. It contains the recursively resolved dependencies with their versions. Dependencies can be defined with version ranges. Therefore, they are not unambiguous and can lead to different results depending on the time of analysis.

When you delete the node_modules folder and re-run npm install, it will produce the same content based on the module versions registered in package-lock.json. As a result, it might be useful to add this file to your version control system. To make things reproducible.

Original TypeScript Module

Let’s create a file named demotab.ts in a new folder src with the following content:

import { simpleSqlName } from "sql-assert";
import oracledb from "oracledb";

// global variable for default connection in the database
declare const session: oracledb.Connection;

/**
 * Creates demo tables with initial data for the well-known tables `dept` and `emp`.
 * Alternative table names can be passed to this function. The tables are not re-created
 * if they already exist. However, the rows for the 4 departments and the 14 employees
 * should be reset to their initial state while other rows are left unchanged.
 * Problems are reported via exceptions.
 *
 * @param [deptName="dept"] name of the dept table.
 * @param [empName="emp"] name of the emp table.
 * @returns {Promise<void>}.
 */
export async function create(deptName: string = "dept", empName: string = "emp"): Promise<void> {
    const dept = simpleSqlName(deptName);
    const emp = simpleSqlName(empName);
    await session.execute(`
        create table if not exists ${dept} (
           deptno number(2, 0)      not null constraint ${dept}_pk primary key,
           dname  varchar2(14 char) not null,
           loc    varchar2(13 char) not null
        )
    `);
    await session.execute(`
        merge into ${dept} t
        using (values
                 (10, 'ACCOUNTING', 'NEW YORK'),
                 (20, 'RESEARCH',   'DALLAS'),
                 (30, 'SALES',      'CHICAGO'),
                 (40, 'OPERATIONS', 'BOSTON')
              ) s (deptno, dname, loc)
           on (t.deptno = s.deptno)
         when matched then
              update
                 set t.dname = s.dname,
                     t.loc = s.loc
         when not matched then
              insert (t.deptno, t.dname, t.loc)
              values (s.deptno, s.dname, s.loc)
    `);
    await session.execute(`
        create table if not exists ${emp} (
            empno    number(4, 0)      not null  constraint ${emp}_pk primary key,
            ename    varchar2(10 char) not null,
            job      varchar2(9 char)  not null,
            mgr      number(4, 0)                constraint ${emp}_mgr_fk references ${emp},
            hiredate date              not null,
            sal      number(7, 2),
            comm     number(7, 2),
            deptno   number(2, 0)      not null  constraint ${emp}_deptno_fk references ${dept}
        )
    `);
    await session.execute(`create index if not exists ${emp}_mgr_fk_i on ${emp} (mgr)`);
    await session.execute(`create index if not exists ${emp}_deptno_fk_i on ${emp} (deptno)`);
    await session.execute(`alter table ${emp} disable constraint ${emp}_mgr_fk`);
    await session.execute(`
        merge into ${emp} t
        using (values
                 (7839, 'KING',   'PRESIDENT', null, date '1981-11-17', 5000, null, 10),
                 (7566, 'JONES',  'MANAGER',   7839, date '1981-04-02', 2975, null, 20),
                 (7698, 'BLAKE',  'MANAGER',   7839, date '1981-05-01', 2850, null, 30),
                 (7782, 'CLARK',  'MANAGER',   7839, date '1981-06-09', 2450, null, 10),
                 (7788, 'SCOTT',  'ANALYST',   7566, date '1987-04-19', 3000, null, 20),
                 (7902, 'FORD',   'ANALYST',   7566, date '1981-12-03', 3000, null, 20),
                 (7499, 'ALLEN',  'SALESMAN',  7698, date '1981-02-20', 1600,  300, 30),
                 (7521, 'WARD',   'SALESMAN',  7698, date '1981-02-22', 1250,  500, 30),
                 (7654, 'MARTIN', 'SALESMAN',  7698, date '1981-09-28', 1250, 1400, 30),
                 (7844, 'TURNER', 'SALESMAN',  7698, date '1981-09-08', 1500,    0, 30),
                 (7900, 'JAMES',  'CLERK',     7698, date '1981-12-03',  950, null, 30),
                 (7934, 'MILLER', 'CLERK',     7782, date '1982-01-23', 1300, null, 10),
                 (7369, 'SMITH',  'CLERK',     7902, date '1980-12-17',  800, null, 20),
                 (7876, 'ADAMS',  'CLERK',     7788, date '1987-05-23', 1100, null, 20)
              ) s (empno, ename, job, mgr, hiredate, sal, comm, deptno)
           on (t.empno = s.empno)
         when matched then
              update
                 set t.ename = s.ename,
                     t.job = s.job,
                     t.mgr = s.mgr,
                     t.hiredate = s.hiredate,
                     t.sal = s.sal,
                     t.comm = s.comm,
                     t.deptno = s.deptno
         when not matched then
              insert (t.empno, t.ename, t.job, t.mgr, t.hiredate, t.sal, t.comm, t.deptno)
              values (s.empno, s.ename, s.job, s.mgr, s.hiredate, s.sal, s.comm, s.deptno)
    `);
    await session.execute(`alter table ${emp} enable constraint ${emp}_mgr_fk`);
}

Global session Variable

On line 5 we declare a constant named session. This way we tell the TypeScript compiler that a read-only session variable of type oracledb.Connection is available. As a result, we have code completion enabled for session.

Asynchronous Function

On line 18 we define the signature of the create function. Please note that this is an asynchronous function. We need that to use await in Node. However, functions in MLE modules run always synchronously within the Oracle Database, even if a function is declared as async. So, async would not be necessary if the code runs exclusively in the database.

Preventing SQL Injection

We call simpleSqlName on lines 19 and 20 to ensure that no SQL injection is possible. This makes the variables dept and emp in the template literals safe. The function simpleSqlName has the advantage that it runs outside of the database. It has the same logic as its sibling dbms_assert.simple_sql_name.

Generated JavaScript Module

We run the TypeScript compiler as follows in a terminal window within VS Code:

npm run tsc

This will execute tsc --project tsconfig.json as defined in package.json and produce a demotab.js file in the esm folder.

import { simpleSqlName } from "sql-assert";
/**
 * Creates demo tables with initial data for the well-known tables `dept` and `emp`.
 * Alternative table names can be passed to this function. The tables are not re-created
 * if they already exist. However, the rows for the 4 departments and the 14 employees
 * should be reset to their initial state while other rows are left unchanged.
 * Problems are reported via exceptions.
 *
 * @param [deptName="dept"] name of the dept table.
 * @param [empName="emp"] name of the emp table.
 * @returns {Promise<void>}.
 */
export async function create(deptName = "dept", empName = "emp") {
    const dept = simpleSqlName(deptName);
    const emp = simpleSqlName(empName);
    await session.execute(`
        create table if not exists ${dept} (
           deptno number(2, 0)      not null constraint ${dept}_pk primary key,
           dname  varchar2(14 char) not null,
           loc    varchar2(13 char) not null
        )
    `);
    await session.execute(`
        merge into ${dept} t
        using (values
                 (10, 'ACCOUNTING', 'NEW YORK'),
                 (20, 'RESEARCH',   'DALLAS'),
                 (30, 'SALES',      'CHICAGO'),
                 (40, 'OPERATIONS', 'BOSTON')
              ) s (deptno, dname, loc)
           on (t.deptno = s.deptno)
         when matched then
              update
                 set t.dname = s.dname,
                     t.loc = s.loc
         when not matched then
              insert (t.deptno, t.dname, t.loc)
              values (s.deptno, s.dname, s.loc)
    `);
    await session.execute(`
        create table if not exists ${emp} (
            empno    number(4, 0)      not null  constraint ${emp}_pk primary key,
            ename    varchar2(10 char) not null,
            job      varchar2(9 char)  not null,
            mgr      number(4, 0)                constraint ${emp}_mgr_fk references ${emp},
            hiredate date              not null,
            sal      number(7, 2),
            comm     number(7, 2),
            deptno   number(2, 0)      not null  constraint ${emp}_deptno_fk references ${dept}
        )
    `);
    await session.execute(`create index if not exists ${emp}_mgr_fk_i on ${emp} (mgr)`);
    await session.execute(`create index if not exists ${emp}_deptno_fk_i on ${emp} (deptno)`);
    await session.execute(`alter table ${emp} disable constraint ${emp}_mgr_fk`);
    await session.execute(`
        merge into ${emp} t
        using (values
                 (7839, 'KING',   'PRESIDENT', null, date '1981-11-17', 5000, null, 10),
                 (7566, 'JONES',  'MANAGER',   7839, date '1981-04-02', 2975, null, 20),
                 (7698, 'BLAKE',  'MANAGER',   7839, date '1981-05-01', 2850, null, 30),
                 (7782, 'CLARK',  'MANAGER',   7839, date '1981-06-09', 2450, null, 10),
                 (7788, 'SCOTT',  'ANALYST',   7566, date '1987-04-19', 3000, null, 20),
                 (7902, 'FORD',   'ANALYST',   7566, date '1981-12-03', 3000, null, 20),
                 (7499, 'ALLEN',  'SALESMAN',  7698, date '1981-02-20', 1600,  300, 30),
                 (7521, 'WARD',   'SALESMAN',  7698, date '1981-02-22', 1250,  500, 30),
                 (7654, 'MARTIN', 'SALESMAN',  7698, date '1981-09-28', 1250, 1400, 30),
                 (7844, 'TURNER', 'SALESMAN',  7698, date '1981-09-08', 1500,    0, 30),
                 (7900, 'JAMES',  'CLERK',     7698, date '1981-12-03',  950, null, 30),
                 (7934, 'MILLER', 'CLERK',     7782, date '1982-01-23', 1300, null, 10),
                 (7369, 'SMITH',  'CLERK',     7902, date '1980-12-17',  800, null, 20),
                 (7876, 'ADAMS',  'CLERK',     7788, date '1987-05-23', 1100, null, 20)
              ) s (empno, ename, job, mgr, hiredate, sal, comm, deptno)
           on (t.empno = s.empno)
         when matched then
              update
                 set t.ename = s.ename,
                     t.job = s.job,
                     t.mgr = s.mgr,
                     t.hiredate = s.hiredate,
                     t.sal = s.sal,
                     t.comm = s.comm,
                     t.deptno = s.deptno
         when not matched then
              insert (t.empno, t.ename, t.job, t.mgr, t.hiredate, t.sal, t.comm, t.deptno)
              values (s.empno, s.ename, s.job, s.mgr, s.hiredate, s.sal, s.comm, s.deptno)
    `);
    await session.execute(`alter table ${emp} enable constraint ${emp}_mgr_fk`);
}
//# sourceMappingURL=demotab.js.map

As you see on line 13, all type definitions are gone including the oracledb import. So, the JavaScript file has no dependencies on a database driver. As a result, we can use node-oracledb outside the database and mle-js-oracledb within the database.

Besides the removed types, the file looks very much like its TypeScript pendant.

On line 89 there’s a comment mentioning a map file. This map file was also generated by the TypeScript compiler. It improves the developer experience during a debugging session so that the developer can work on the original TypeScript files. The JavaScript files are only used behind the scenes.

Testing

1. Framework

I decided to use Vitest for this project. Why not Jest or Mocha?

I tried Mocha with a plain JavaScript project. It felt a bit outdated and I did not like the fact that I had to opt-in for an assertion library. IMO this should be part of the framework. It’s too much freedom. Too many unnecessary variants when googling for solutions.

Jest is a full-fletched and very popular testing framework. It would have been a natural choice. However, I stumbled over Vitest with a Jest-compatible API which claims to be faster and easier to use with TypeScript. So I thought to give it a try.

2. Database Configuration

We create a file named dbconfig.ts in a new folder test with the following content:

import oracledb from "oracledb";

let sysSession: oracledb.Connection;
export let demotabSession: oracledb.Connection;
export let otheruserSession: oracledb.Connection;

const connectString = "192.168.1.8:51007/freepdb1";

const sysConfig: oracledb.ConnectionAttributes = {
    user: "sys",
    password: "oracle",
    connectString: connectString,
    privilege: oracledb.SYSDBA
};

export const demotabConfig: oracledb.ConnectionAttributes = {
    user: "demotab",
    password: "demotab",
    connectString: connectString
};

export const otheruserConfig: oracledb.ConnectionAttributes = {
    user: "otheruser",
    password: "otheruser",
    connectString: connectString
};

export async function createSessions(): Promise<void> {
    sysSession = await oracledb.getConnection(sysConfig);
    await createUser(demotabConfig);
    await createUser(otheruserConfig);
    await sysSession.execute("grant create public synonym to demotab");
    await sysSession.execute("grant execute on javascript to public");
    sysSession.close();
    demotabSession = await oracledb.getConnection(demotabConfig);
    otheruserSession = await oracledb.getConnection(otheruserConfig);
}

async function createUser(config: oracledb.ConnectionAttributes): Promise<void> {
    await sysSession.execute(`drop user if exists ${config.user} cascade`);
    await sysSession.execute(`
        create user ${config.user} identified by ${config.password}
           default tablespace users
           temporary tablespace temp
           quota 1m on users
    `);
    await sysSession.execute(`grant db_developer_role to ${config.user}`);
}

export async function closeSessions(): Promise<void> {
    await demotabSession?.close();
    await otheruserSession?.close();
}

To make the configuration work in your environment, you need to change the lines 7 and 11. The connect string and the password of the Oracle user sys. Everything else could be left “as is”.

This module creates the database users demotab and otheruser and manages database sessions.

3. Test TypeScript Module Outside of the Database

We create a file named demotab.test.ts in the folder test with the following content:

import { beforeAll, afterAll, describe, it, expect } from "vitest";
import { createSessions, closeSessions, demotabSession } from "./dbconfig";
import { create } from "../src/demotab";

describe("TypeScript outside of the database", () => {
    const timeout = 10000;

    beforeAll(async () => {
        await createSessions();
        global.session = demotabSession;
    });

    describe("invalid input causing 'Invalid SQL name.'", () => {
        // error is thrown in JavaScript (no ORA-04161 outside of the database)
        it("should throw an error with invalid deptName", () => {
            expect(async () => await create("a-dept-table")).rejects.toThrowError(/invalid sql/i);
        });
        it("should throw an error with invalid empName", () => {
            expect(async () => await create("dept", "a-emp-table")).rejects.toThrowError(/invalid sql/i);
        });
    });

    describe("invalid input causing 'ORA-00911: _: invalid character after <identifier>'", () => {
        // error is thrown by the Oracle Database while trying to execute a SQL statement
        it("should throw an error with quoted deptName", () => {
            expect(async () => await create('"dept"')).rejects.toThrowError(/ORA-00911.+invalid/);
        });
        it("should throw an error with quoted empName", () => {
            expect(async () => await create("dept", '"emp"')).rejects.toThrowError(/ORA-00911.+invalid/);
        });
    });

    describe(
        "valid input",
        () => {
            it("should create 'dept' and 'emp' without parameters)", async () => {
                await create();
                const dept = await demotabSession.execute("select * from dept order by deptno");
                expect(dept.rows).toEqual([
                    [10, "ACCOUNTING", "NEW YORK"],
                    [20, "RESEARCH", "DALLAS"],
                    [30, "SALES", "CHICAGO"],
                    [40, "OPERATIONS", "BOSTON"]
                ]);
                const emp = await demotabSession.execute(`
                    select empno, ename, job, mgr, to_char(hiredate,'YYYY-MM-DD'), sal, comm, deptno
                    from emp
                    order by empno
                `);
                expect(emp.rows).toEqual([
                    [7369, "SMITH", "CLERK", 7902, "1980-12-17", 800, null, 20],
                    [7499, "ALLEN", "SALESMAN", 7698, "1981-02-20", 1600, 300, 30],
                    [7521, "WARD", "SALESMAN", 7698, "1981-02-22", 1250, 500, 30],
                    [7566, "JONES", "MANAGER", 7839, "1981-04-02", 2975, null, 20],
                    [7654, "MARTIN", "SALESMAN", 7698, "1981-09-28", 1250, 1400, 30],
                    [7698, "BLAKE", "MANAGER", 7839, "1981-05-01", 2850, null, 30],
                    [7782, "CLARK", "MANAGER", 7839, "1981-06-09", 2450, null, 10],
                    [7788, "SCOTT", "ANALYST", 7566, "1987-04-19", 3000, null, 20],
                    [7839, "KING", "PRESIDENT", null, "1981-11-17", 5000, null, 10],
                    [7844, "TURNER", "SALESMAN", 7698, "1981-09-08", 1500, 0, 30],
                    [7876, "ADAMS", "CLERK", 7788, "1987-05-23", 1100, null, 20],
                    [7900, "JAMES", "CLERK", 7698, "1981-12-03", 950, null, 30],
                    [7902, "FORD", "ANALYST", 7566, "1981-12-03", 3000, null, 20],
                    [7934, "MILLER", "CLERK", 7782, "1982-01-23", 1300, null, 10]
                ]);
            });
            it("should create 'dept2' and 'emp2' with both parameters)", async () => {
                await create("dept2", "emp2");
                const dept = await demotabSession.execute("select * from dept minus select * from dept2");
                expect(dept.rows).toEqual([]);
                const emp = await demotabSession.execute("select * from emp minus select * from emp2");
                expect(emp.rows).toEqual([]);
            });
            it("should fix data in 'dept' and 'emp' after changing data and using default parameters", async () => {
                await demotabSession.execute(`
                    begin
                        delete dept where deptno = 40;
                        update dept set loc = initcap(loc);
                        insert into dept(deptno, dname, loc) values(50, 'utPLSQL', 'Winterthur');
                        delete emp where empno = 7876;
                        update emp set sal = sal * 2;
                        insert into emp(empno, ename, job, hiredate, sal, deptno)
                        values (4242, 'Salvisberg', 'Tester', date '2000-01-01', 9999, '50');
                    end;
                `);
                await create();
                const dept = await demotabSession.execute("select * from dept minus select * from dept2");
                expect(dept.rows).toEqual([[50, "utPLSQL", "Winterthur"]]);
                const emp = await demotabSession.execute(`
                    select empno, ename, job, mgr, to_char(hiredate,'YYYY-MM-DD'), sal, comm, deptno
                    from emp
                    minus
                    select empno, ename, job, mgr, to_char(hiredate,'YYYY-MM-DD'), sal, comm, deptno
                    from emp2
                `);
                expect(emp.rows).toEqual([[4242, "Salvisberg", "Tester", null, "2000-01-01", 9999, null, 50]]);
            });
        },
        timeout
    );

    afterAll(async () => {
        await closeSessions();
    });
});

Test Suite

The main test suite starts on line 5 and ends on line 105. The Vitest configuration enforces serial execution. As a result, the tests are executed according to their order in the file.

Global session Variable

On line 11 we initialize the global variable session with a database session to the Oracle user demotab. We use this global variable in the function create. See demotab.ts.

Test Case – Assertions

Look at line 36. It looks similar to the English sentence “it should create ‘dept’ and ’emp’ without parameters”. That’s why the testing framework provides the alias it for the function test. This notation leads to test names that are easier to understand in the code and other contexts where the it is not shown, during test execution, for example.

On line 37 we call the create function without parameters. We read the content of the table dept into a variable dept on line 38. And finally on lines 39 to 44 we assert if the 4 expected rows are stored in the table dept.

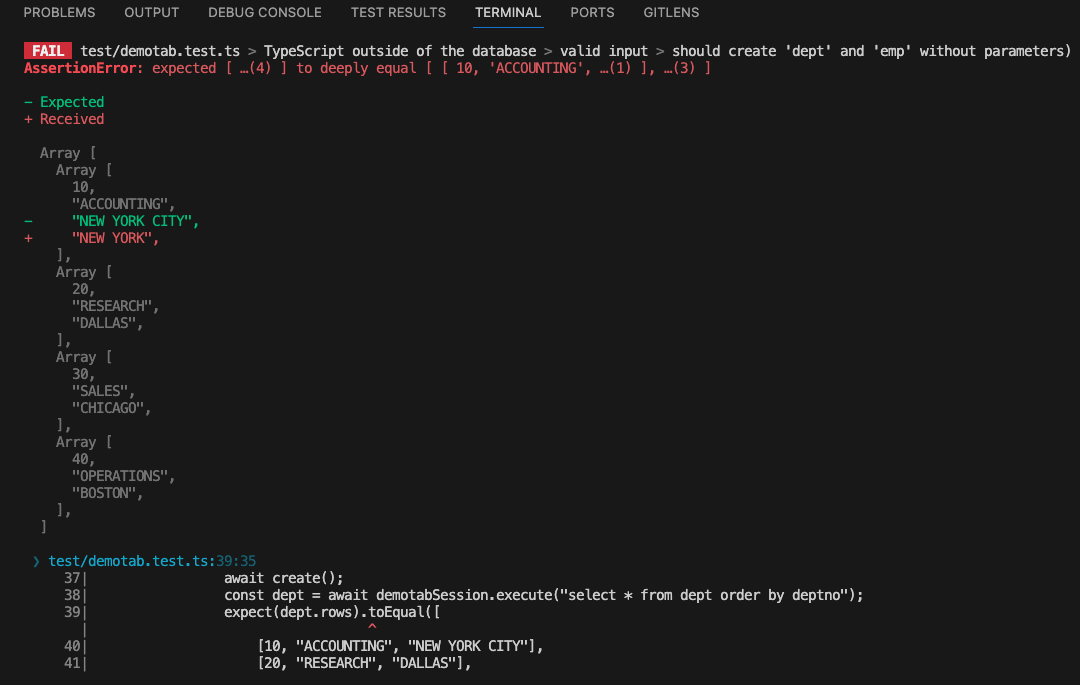

A difference between the expected and actual results would be reported like this. I changed the expected output in the code to produce this result:

4. Run All Tests

To run all tests open a terminal window in VS Code and execute the following command:

npm run test

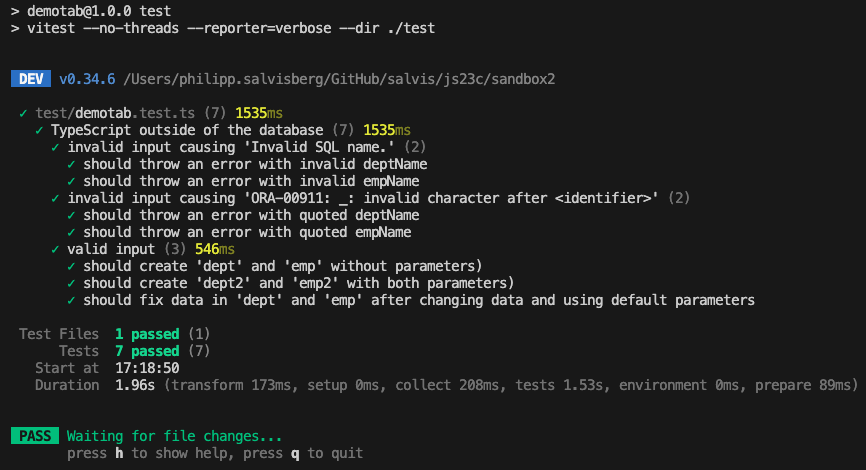

This will produce an output similar to this:

5. Build with Test Coverage

Open a terminal window in VS Code and execute the following to format, lint and compile the code, and run all tests with a code coverage report:

npm run build

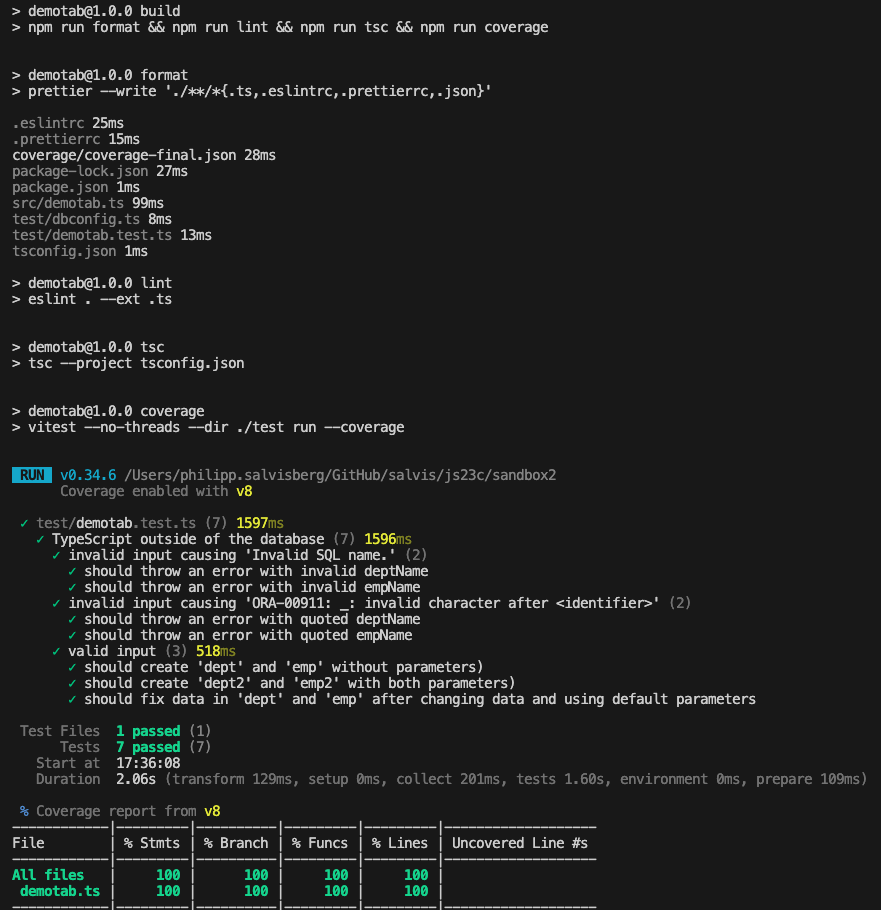

This will produce an output similar to this:

Deployment

We tested the module successfully outside of the database. Now it’s time to deploy it into the database. For that, we create the SQL script deploy.sql in the root folder of our project with the following content:

set define off
script
var url = new java.net.URL("https://esm.run/sql-assert@1.0.3");
var content = new java.lang.String(url.openStream().readAllBytes(),
                  java.nio.charset.StandardCharsets.UTF_8);
var script = 'create or replace mle module sql_assert_mod '
               + 'language javascript as ' + '\n'
               + content + "\n"
               + '/' + "\n";
sqlcl.setStmt(script);
sqlcl.run();
/

script
var path = java.nio.file.Path.of("./esm/demotab.js");
var content = java.nio.file.Files.readString(path);
var script = 'create or replace mle module demotab_mod '
               + 'language javascript as ' + '\n'
               + content + "\n"
               + '/' + "\n";
sqlcl.setStmt(script);
sqlcl.run();
/

create or replace mle env demotab_env
   imports('sql-assert' module sql_assert_mod)
   language options 'js.strict=true, js.console=false, js.polyglot-builtin=true';

create or replace package demo authid current_user is
   procedure create_tabs as
   mle module demotab_mod env demotab_env signature 'create()';

   procedure create_tabs(
      in_dept_table_name in varchar2
   ) as mle module demotab_mod env demotab_env signature 'create(string)';

   procedure create_tabs(
      in_dept_table_name in varchar2,
      in_emp_table_name  in varchar2
   ) as mle module demotab_mod env demotab_env signature 'create(string, string)';
end demo;
/

-- required "execute on javascript" was granted to public in test
grant execute on demo to public;
create or replace public synonym demo for demotab.demo;

exit

npm Module sql-assert (MLE Module sql_assert_mod)

On lines 2-12, we load version 1.0.3 of the npm module sql-assert as MLE module sql_assert_mod into the database. We dynamically build a create or replace mle module statement and execute it with the help of SQLcl’s script command.

The URL https://esm.run/sql-assert@1.0.3 provides a minimized file of the npm module. In other words, it is optimized for use in browsers where the modules are loaded over the network at runtime.

Minimized code works in the database, of course. However, it might make it a bit harder to understand the error stack.

No Template Literals?

You might wonder why we do not use ECMAScript template literals to populate the script variable. The reason is, that SQLcl does not provide a JavaScript engine. It relies on the JDK’s JavaScript engine. Unfortunately, the Nashorn JavaScript engine is decommissioned in current JDKs. The last JDK with a JavaScript engine is JDK 11, based on ECMAScript 2011 (5.1), which does not support template literals.

The GraalVM JDK is an exception. Versions 17 and 21 come with a current GraalVM JavaScript engine that supports template literals. And this JDK can be used with SQLcl.

However, there is an additional reason to avoid JavaScript features introduced after ECMAScript 2011 and that’s SQL Developer. You can run the SQL script deploy.sql also in an SQL Developer worksheet. SQL Developer requires a JDK 11. You cannot use a newer JDK in SQL Developer, because you would lose some important features such as Real Time SQL Monitor which requires JavaFX. Another decommissioned component in the JDK. And the GraalVM JDK does not provide JavaFX.

So for compatibility reasons, we have to stick to old JavaScript features available in ECMAScript 2011 when using the script command in SQLcl or SQL Developer.

Local Module demotab (MLE Module demotab_mod)

On lines 14-23, we load the JavaScript MLE module demotab from our local file system into the database. The process is similar to the npm module. The only difference is that we get the module from the local disk and not over the network.

MLE Environment demotab_env

On lines 25-27, we create an MLE environment. Besides configuring compiler options, we tell the JavaScript compiler what modules are available and where to find them.

PL/SQL Call Interface

On lines 29-42, we create a PL/SQL package demo. It contains three procedures with call specifications for the function create in the MLE module demotab_mod. Why three procedures and not just one? Because the MLE call specifications do not support default values for parameters. However, we can work around it by providing three procedures. One without parameters, one with a single parameter and another one with two parameters.

Test JavaScript MLE Module within the Database

To test if the deployed code works we create the file mle-demotab.test.ts in the folder test with the following content:

import { beforeAll, afterAll, describe, it, expect, beforeEach } from "vitest";
import { createSessions, closeSessions, otheruserSession, demotabSession, demotabConfig } from "./dbconfig";
import oracledb from "oracledb";
import { exec } from "child_process";
import util from "node:util";

describe("MLE JavaScript module within the database", () => {
    const timeout = 15000;

    async function userTables(): Promise<oracledb.Result<unknown>> {
        return await otheruserSession.execute(`
            with
               function num_rows(in_table_name in varchar2) return integer is
                  l_rows integer;
               begin
                  execute immediate 'select count(*) from ' || in_table_name
                     into l_rows;
                  return l_rows;
               end;
            select table_name, num_rows(table_name) as num_rows
              from user_tables
             order by table_name
        `);
    }

    beforeAll(async () => {
        await createSessions();
        const execAsync = util.promisify(exec);
        await execAsync(
            `sql -S ${demotabConfig.user}/${demotabConfig.password}@${demotabConfig.connectString} @deploy.sql`
        );
    }, timeout);

    beforeEach(async () => {
        await otheruserSession.execute(`
            begin
               for r in (select table_name from user_tables) loop
                  execute immediate 'drop table '
                     || r.table_name
                     || ' cascade constraints purge';
               end loop;
            end;
        `);
    });

    describe("deployment", () => {
        it("should have valid database objects in demotab user", async () => {
            const mods = await demotabSession.execute(`
                select object_type, object_name, status
                  from user_objects
                 order by object_type, object_name
            `);
            expect(mods.rows).toEqual([
                ["MLE ENVIRONMENT", "DEMOTAB_ENV", "VALID"],
                ["MLE MODULE", "DEMOTAB_MOD", "VALID"],
                ["MLE MODULE", "SQL_ASSERT_MOD", "VALID"],
                ["PACKAGE", "DEMO", "VALID"]
            ]);
        });
    });

    describe("run MLE module from otheruser", () => {
        it("should create 'dept' and 'emp' without parameters", async () => {
            await otheruserSession.execute("begin demo.create_tabs; end;");
            expect((await userTables()).rows).toEqual([
                ["DEPT", 4],
                ["EMP", 14]
            ]);
        });
        it("should create 'd' and 'emp' with first parameter only", async () => {
            await otheruserSession.execute("begin demo.create_tabs('d'); end;");
            expect((await userTables()).rows).toEqual([
                ["D", 4],
                ["EMP", 14]
            ]);
        });
        it("should create 'd' and 'e' with both parameters", async () => {
            await otheruserSession.execute("begin demo.create_tabs('d', 'e'); end;");
            expect((await userTables()).rows).toEqual([
                ["D", 4],
                ["E", 14]
            ]);
        });
    });

    afterAll(async () => {
        await closeSessions();
    });
});

On line 30 we run the SQL script deploy.sql with SQLcl. We connect as demotab with the credentials and connect string configured in dbconfig.ts.

We test the default PL/SQL call interface on lines 63-69 by executing begin demo.create_tabs; end;. Then we check the number of rows in the tables dept and emp. That’s enough. We do not need to repeat the tests of the demotab module since the module was already successfully tested.

Re-Run All Tests

To re-run all tests open a terminal window in VS Code and execute the following command:

npm run test

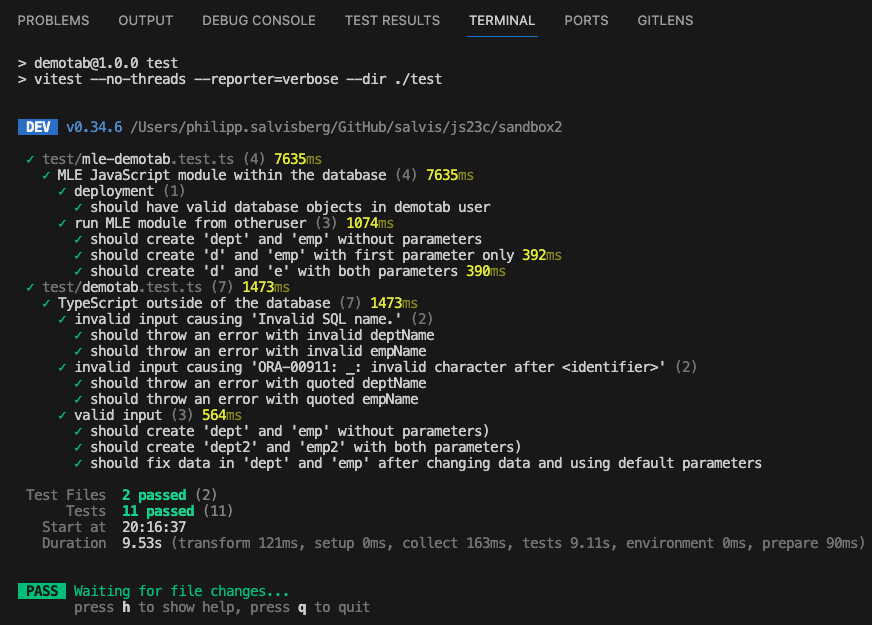

This will produce an output similar to this:

Conclusion

For years I’ve been advocating file-based database development. With moderate success. All of my customers are using a version control system and automated deployments. However, the way the files in the version control system are maintained is suboptimal. In most cases, the developers use an IDE such as SQL Developer or PL/SQL Developer to read the source code from the database, change it in the editor of the IDE and then save (=deploy) it in the database. Updating the files in the version control system is a postponed, sometimes half-automated task. This leads to all kinds of bugs detected in the CI (or in later stages) which should have been detected during development. Sometimes code changes are lost, for example, when the underlying database instance has been replaced by a newer clone.

Why is it so hard to change the behaviour of the database developers? Changing the files first and then deploying them into the database? One reason is that the IDEs do not support the file-based development process well enough. They favour the let-us-read-everything-from-the-database approach, which makes sense for application data but is not ideal for code.

The MLE is not supported by the current IDEs. Oracle Database Actions (SQL Developer Web) is an exception, it provides basic support for MLE. However, I guess it will take years until a reasonable functionality is provided, if at all.

So when we want to develop MLE modules efficiently we have to use the currently available IDEs for TypeScript or JavaScript. They are great. Excellent editor, VCS integration, testing tools, debugger, formatter, linter and packaging system. The ecosystem is mature and is constantly improving. I very much like the fact that we have a global module registry npm which supports also private modules. As a result, being forced to use this ecosystem is not a bad thing. Quite the contrary. It’s the best that could have happened to database development.

When I look at the code of this MLE demo module, I’m quite happy with it. I’m confident that this approach can be used on a larger scale.

IMO the MLE is the best thing that happened to the Oracle Database since version 7, which brought us PL/SQL.

Let’s find out what works and what should be improved.

Updated on 2023-11-13, using npm install to initialize the Node project; using var instead of const in deploy.sql to make it compatible with ECMAScript 2011 (ES 5.1).

Updated on 2023-11-14, using declare const session: oracledb.Connection; on line 5 of demotab.ts (instead of any) and amended all related parts (removed "@typescript-eslint/no-explicit-any": "off" in .eslintrc; changed description of .eslintrc; changed description of “Global session variable”; changed description of demotab.js)

The post MLE TypeScript & JavaScript Modules appeared first on Philipp Salvisberg's Blog.
